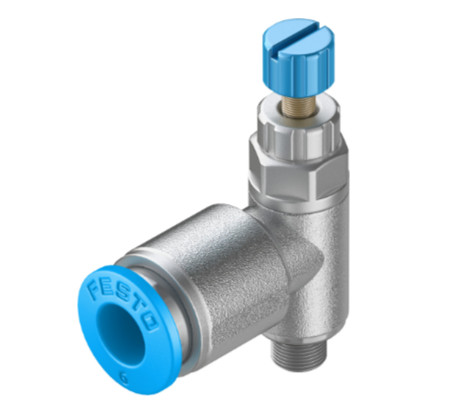

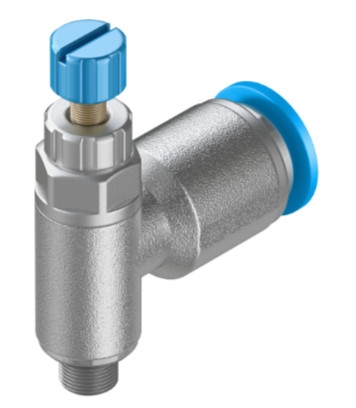

Van điều khiển lưu lượng một chiều GRLA-M5-QS-6-RS-D
Liên hệ
Giá 10.000₫
Van điều khiển lưu lượng một chiều GRLA-M5-QS-6-RS-D (PN: 197578)
Valve function: Exhaust air one-way flow control function
Pneumatic connection, port 1QS-6
Pneumatic connection, port 2M5
Adjustment componentKnurled screw
Type of mountingScrew-in
Standard nominal flow rate in flow control direction115 l/min
Standard nominal flow rate in blocked direction70 l/min ... 110 l/min
Operating pressure0.2 bar ... 10 bar
Ambient temperature-10 °C ... 60 °C
Operating pressure complete temperature range0.2 bar ... 10 bar
Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)185 l/min
Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)145 l/min ... 170 l/min
Van điều khiển lưu lượng một chiều GRLA-M5-QS-6-RS-D (PN: 197578)
- Valve function: Exhaust air one-way flow control function
- Pneumatic connection, port 1QS-6
- Pneumatic connection, port 2M5
- Adjustment componentKnurled screw
- Type of mountingScrew-in
- Standard nominal flow rate in flow control direction115 l/min
- Standard nominal flow rate in blocked direction70 l/min ... 110 l/min
- Operating pressure0.2 bar ... 10 bar
- Ambient temperature-10 °C ... 60 °C
- Operating pressure complete temperature range0.2 bar ... 10 bar
- Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)185 l/min
- Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)145 l/min ... 170 l/min
