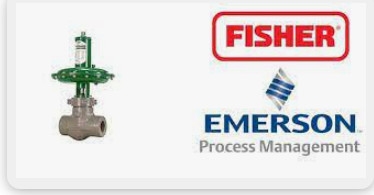

Trip valve

Liên hệ

Giá 1.000₫

- Áp suất: 3.8 bar đến 10.3 bar - Outlet pressure:     + Normal Operation: Pressure from control device    + Fail‐Up or Fail‐Down Mode: Maximum volume tank pressure    + Lock‐In‐Last‐Position: Respective cylinder pressure - Trip point: Adjustable from a minimum of 2.8 bar (40 psig) to a maximum of 72 percent of supply pressure; - Reset: 12.5 to 33 percent above adjusted trip point - Body Connections: 1/4 NPT - Nitrile Diaphragms and O‐Rings: -40 to 82°C - Vật liệu vỏ: Aluminum - Khối lượng: 0.95 kg Type: 377 P/N: 49A3192X042 Nhà sản xuất: Fisher- Emerson Xuất xứ: China

- Áp suất: 3.8 bar đến 10.3 bar
- Outlet pressure:
   + Normal Operation: Pressure from control device
   + Fail‐Up or Fail‐Down Mode: Maximum volume tank pressure
   + Lock‐In‐Last‐Position: Respective cylinder pressure
- Trip point: Adjustable from a minimum of 2.8 bar (40 psig) to a maximum of 72 percent of supply pressure;
- Reset: 12.5 to 33 percent above adjusted trip point
- Body Connections: 1/4 NPT
- Nitrile Diaphragms and O‐Rings: -40 to 82°C
- Vật liệu vỏ: Aluminum
- Khối lượng: 0.95 kg

Type: 377 P/N: 49A3192X042

Nhà sản xuất: Fisher- Emerson

Xuất xứ: China
