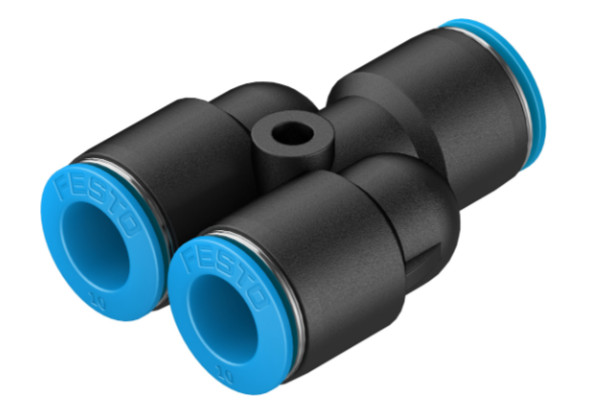

Push-in Y-connector QSY-10 (PN: 153151)
- Nominal size: 6.7 mm
- Mounting position: optional
- Design: Y-shape
- Design: Push-pull principle
- Operating pressure complete temperature range: -0.095 MPa ... 0.6 MPa
- Operating pressure complete temperature range: -0.95 bar ... 6 bar
- Operating pressure complete temperature range: -13.775 psi ... 87 psi
- Temperature-dependent operating pressure: -0.095 MPa ... 1.4 MPa
- Temperature-dependent operating pressure: -0.95 bar ... 14 bar
- Temperature-dependent operating pressure: -13.775 psi ... 203 psi
