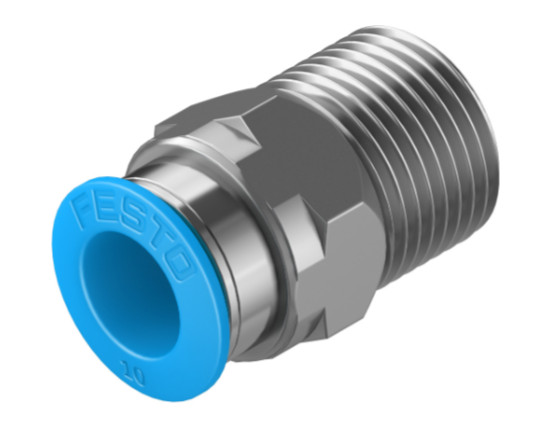

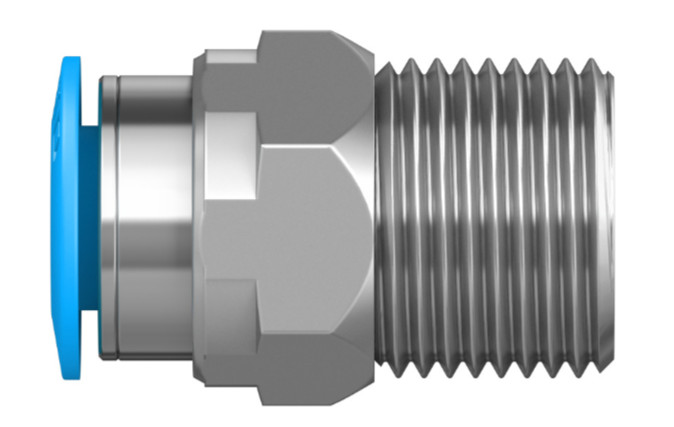

Push-in fitting QS-3/8-10
Liên hệ
Giá 10.000₫
Push-in fitting QS-3/8-10 (PN: 153008)
Size: Standard
Nominal size: 9 mm
Type of seal on screwed plug: Coating
Mounting position: optional
Design: Straight design
Size of pack: 10
Design: Push-pull principle
Operating pressure complete temperature range: -0.095 MPa ... 0.6 MPa
Operating pressure complete temperature range: -0.95 bar ... 6 bar
Operating pressure complete temperature range: -13.775 psi ... 87 psi
Temperature-dependent operating pressure: -0.095 MPa ... 1.4 MPa
Temperature-dependent operating pressure: -0.95 bar ... 14 bar
Temperature-dependent operating pressure: -13.775 psi ... 203 psi
Note on operating and pilot medium: Lubricated operation possible
Ambient temperature: -10 °C ... 80 °C
Nominal torque: 15.5 Nm
Tolerance for nominal tightening torque: ± 20%
Push-in fitting QS-3/8-10 (PN: 153008)
- Size: Standard
- Nominal size: 9 mm
- Type of seal on screwed plug: Coating
- Mounting position: optional
- Design: Straight design
- Size of pack: 10
- Design: Push-pull principle
- Operating pressure complete temperature range: -0.095 MPa ... 0.6 MPa
- Operating pressure complete temperature range: -0.95 bar ... 6 bar
- Operating pressure complete temperature range: -13.775 psi ... 87 psi
- Temperature-dependent operating pressure: -0.095 MPa ... 1.4 MPa
- Temperature-dependent operating pressure: -0.95 bar ... 14 bar
- Temperature-dependent operating pressure: -13.775 psi ... 203 psi
- Note on operating and pilot medium: Lubricated operation possible
- Ambient temperature: -10 °C ... 80 °C
- Nominal torque: 15.5 Nm
- Tolerance for nominal tightening torque: ± 20%
