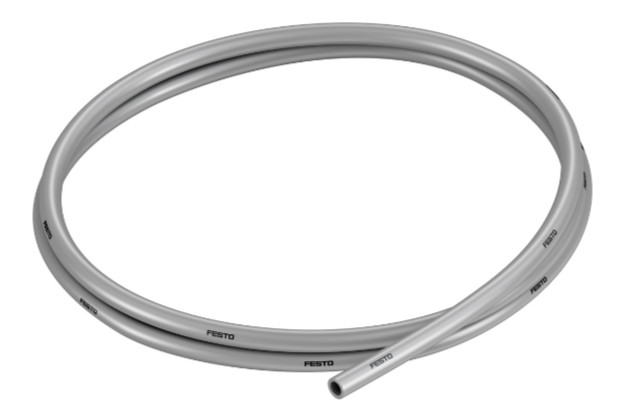

Ống nhựa PUN-H-6X1-SI (PN: 558279)
- Outside diameter: 6 mm
- Flow-relevant bending radius: 26 mm
- Inside diameter: 4 mm
- Min. bending radius: 10 mm
- Instructions on use: TPE-U Ether based
- Tubing characteristics: Suitable for energy chains
- Operating pressure complete temperature range: -0.095 MPa ... 0.6 MPa
- Operating pressure complete temperature range: -0.95 bar ... 6 bar
- Operating pressure complete temperature range: -13.775 psi ... 87 psi
- Temperature-dependent operating pressure: -0.095 MPa ... 1 MPa
- Temperature-dependent operating pressure: -0.95 bar ... 10 bar
- Temperature-dependent operating pressure: -13.775 psi ... 145 psi
