MT-32-9B-22B

Liên hệ

Giá Liên hệ

Model: MT-32 Dùng cho khởi 3pha từ 6B-22B: MC-6B,MC-9B,MC-12B,MC-18B, MC-22B Rated operational voltage, Ue:                690V Rated insulation voltage, Ui:                    690V Rated frequency:                                     50/60Hz Rated impulse withstand voltage, Uimp: 6kV Trip class:                                                10A, IP20 Setting range:                                          0.1~ 40A Weight:                                                    0.17kg Size(W x H x D) mm:                                45 x 75 x 90 Hãng sản xuất: LS Xuất xứ: Hàn Quốc

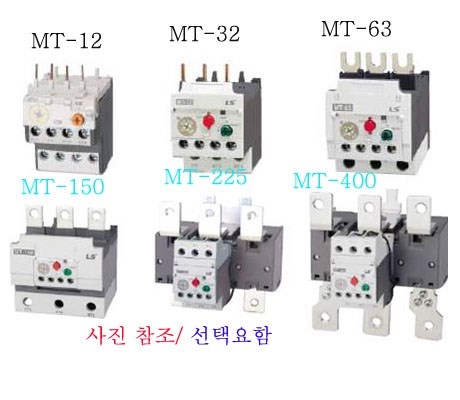

Model: MT-32

Dùng cho khởi 3pha từ 6B-22B: MC-6B,MC-9B,MC-12B,MC-18B, MC-22B

Rated operational voltage, Ue:                690V

Rated insulation voltage, Ui:                    690V

Rated frequency:                                     50/60Hz

Rated impulse withstand voltage, Uimp: 6kV

Trip class:                                                10A, IP20

Setting range:                                          0.1~ 40A

Weight:                                                    0.17kg

Size(W x H x D) mm:                                45 x 75 x 90

Hãng sản xuất: LS

Xuất xứ: Hàn Quốc
