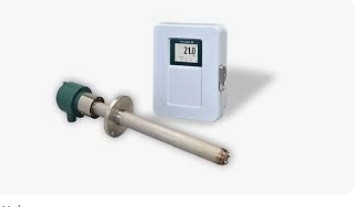

Màn hình cho thiết bị phân tích Oxy ZR802G-M-H-N-N/BR

Màn hình cho thiết bị phân tích Oxy ZR802G-M-H-N-N/BR

'Display: LCD display of size 320 by 240 dot with tochscreen
Output Signal: 4 to 20 mA DC, two points (maximum load resistance 550 )
Contact Output Signal: four points (one is fail-safe, normally open)
Contact Input: two points
Auto-calibration Output: Two points (for dedicated auto-calibration unit)
Ambient Temperature: -20 to +55 C
Storage Temperature: -30 to +70 C
Humidity Ambient: 0 to 95%RH (Non-condensing)
Installation Altitude: 2000 m or less
Power Supply Voltage: Ratings; 100 to 240 V AC Acceptable range; 85 to 264 V AC
Power Supply Frequency: Ratings; 50/60 Hz Acceptable range; 45 to 66 Hz
Power Consumption: Max. 300 W, approx. 100 W for ordinary use.
Wiring Connection: G1/2, Pg13.5, M20 by 1.5 mm, 1/2 NPT, eight holes
Installation: Panel, wall or 2-inch pipe mounting
Case: Aluminum alloy
Paint Color: Door: Sliver gray (Munsell 3.2PB7.4/1.2)
Case: Sliver gray (Munsell 3.2PB7.4/1.2)
Finish: Polyurethane corrosion-resistance coating
Weight: Approx. 6 kg
Converter thread: M20x1.5mm
Display: English
Instruction manual: English
Tag plates: Stainless steel tag plates
Model: ZR802G-M-H-N-N/BR
NSX: Yokogawa/China
