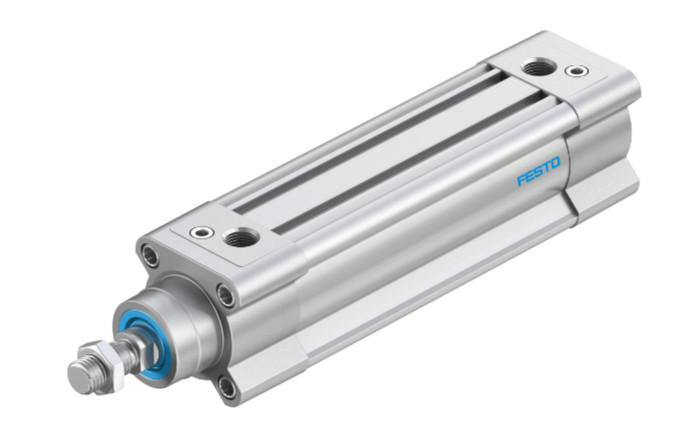

ISO cylinder DSBC-40-100-PPVA-N3

ISO cylinder DSBC-40-100-PPVA-N3 (PN: 1376660) Stroke: 100 mm Piston diameter: 40 mm Piston rod thread: M12x1.25 Cushioning: Pneumatic cushioning, adjustable at both ends Mounting position: optional Ambient temperature: -20 °C ... 80 °C Impact energy in end positions: 0.7 J Cushioning length: 19 mm Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 633 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 754 N Moving mass for 0 mm stroke: 205 g Additional moving mass per 10 mm stroke: 16 g Basic weight for 0 mm stroke: 740 g Additional weight per 10 mm stroke: 37 g
