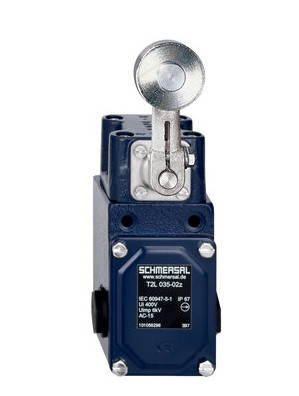

Công tắc giới hạn T2L-035-11Z-M20

Liên hệ

Giá 10.000₫

Công tắc giới hạn T2L-035-11Z-M20 General data - Features Contact: 1NC/1NO Actuating element Roller lever Roller material Metal film Mechanical life, minimum 10,000,000 Operations Actuating angle, from left of switch axis 30 ° Actuating angle, from right of switch axis 30 ° Contact opening 2 x 2.5 mm Actuating speed, minimum 1 mm/min to 1 m/s Termination Screw terminals M20 x 1.5 Mechanical data - Dimensions LxWxH (21 mmx36mmx73mm) Width of Castor 8 mm Diameter of Castor 36 mm Degree of protection IP67 Ambient temperature: -30 °C to +90 °C Ambient conditions - Insulation values Rated insulation voltage Ui: 400 V Rated impulse withstand voltage Uimp 6 kV Thermal test current 10 A Utilisation category AC-15 400 VAC Utilisation category AC-15 4...

Thông tin sản phẩm
Tài liệu tải về
Đặt hàng
Báo giá

Công tắc giới hạn T2L-035-11Z-M20

General data - Features
Contact: 1NC/1NO
Actuating element Roller lever
Roller material Metal film
Mechanical life, minimum 10,000,000 Operations
Actuating angle, from left of switch axis 30 °
Actuating angle, from right of switch axis 30 °
Contact opening 2 x 2.5 mm
Actuating speed, minimum 1 mm/min to 1 m/s
Termination Screw terminals M20 x 1.5
Mechanical data - Dimensions
LxWxH (21 mmx36mmx73mm)
Width of Castor 8 mm
Diameter of Castor 36 mm
Degree of protection IP67
Ambient temperature: -30 °C to +90 °C
Ambient conditions - Insulation values
Rated insulation voltage Ui: 400 V
Rated impulse withstand voltage Uimp 6 kV
Thermal test current 10 A
Utilisation category AC-15 400 VAC
Utilisation category AC-15 4 A
Switching element NO contact, NC contact
Note (Switching element) with double break
Switching principle Slow action
Switching frequency 3,000 /h

Nhà sản xuất: SCHMERSAL

Xuất xứ: Germany
