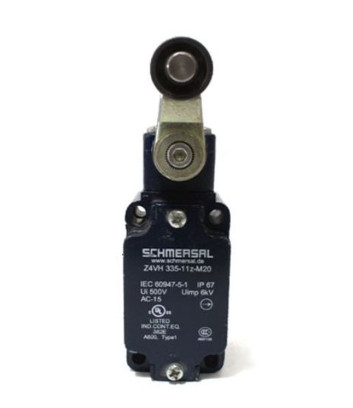

Công tắc giới hạn hành trình Z4V7H335-11Z-2272/2654

Còn hàng

Giá 10.000₫

Công tắc giới hạn hành trình Z4V7H335-11Z-2272/2654 Snap action IEC 60947-5-1 Ui 500V Uimp 6KV AC-15 Utilisation category AC-15: 230 V / 4 A, DC-13: 24 V / 4 A Roller lever 7H Materials Material of the housings Aluminium Lever material Metal film Roller material Plastic Material of the contacts Silver Design of electrical connection Screw connection Cable section Min. Cable section 0,75 mm² Max. Cable section 2.5 mm² Mechanical life 30.000.000 operations Switching frequency max. 5000 /h Ambient temperature - Min. environmental temperature −30 °C Max. environmental temperature +80 °C Protection class IP67 Contact: 1NO/1NC Model: Z4V7H335-11Z-2272/2654 Nhãn hiệu:Schmersal Xuất xứ: China

Công tắc giới hạn hành trình Z4V7H335-11Z-2272/2654

Snap action IEC 60947-5-1
Ui 500V Uimp 6KV AC-15
Utilisation category AC-15: 230 V / 4 A, DC-13: 24 V / 4 A
Roller lever 7H Materials
Material of the housings Aluminium
Lever material Metal film
Roller material Plastic
Material of the contacts Silver Design of electrical connection Screw connection Cable section
Min. Cable section 0,75 mm²
Max. Cable section 2.5 mm²
Mechanical life 30.000.000 operations
Switching frequency max. 5000 /h
Ambient temperature - Min. environmental temperature −30 °C
Max. environmental temperature +80 °C
Protection class IP67 Contact: 1NO/1NC

Model: Z4V7H335-11Z-2272/2654

Nhãn hiệu:Schmersal

Xuất xứ: China
