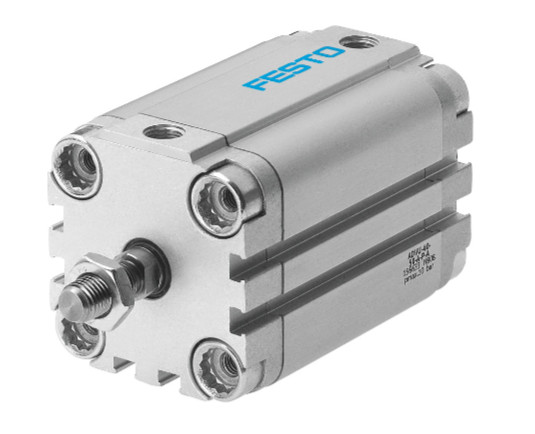

Compact cylinder ADVU-40-40-A-P-A (PN: 156632)
- Stroke: 40 mm
- Piston diameter: 40 mm
- Cushioning: Elastic cushioning rings/plates at both ends
- Mounting position: optional
- Mode of operation: Double-acting
- Piston-rod end: Male thread
- Design: Piston Piston rod
- Position detection: Via proximity switch
- Variants: Piston rod at one end
- Operating pressure: 0.08 MPa ... 1 MPa
- Operating pressure: 0.8 bar ... 10 bar
- Operating pressure: 11.6 psi ... 145 psi
